Product Specifications

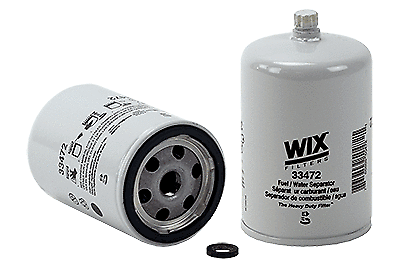

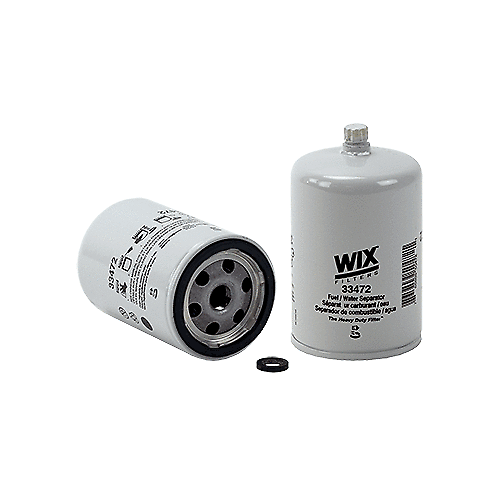

Part Number: 33472
UPC Number: 765809334724
Style: Spin-On Fuel/Water Separator Filter
Service: Fuel
Type: -
Media: Enchanced Cellulose
Height: 5.196" (132mm)
Outer Diameter Top: 3.015" (77mm)
Outer Diameter Bottom: Closed
Thread Size: 16 x 1.5mm
Burst Pressure-PSI: 330
Max Flow Rate: 6-8 GPM
Micron Rating: 14

Gasket Diameters

Number O.D I.D Thick.
Attached 2.74 (70)* 2.37 (60)* 0.217 (6)*
Packed 0.871 (22)* 0.595 (15)* 0.143 (4)*


Principle Application
Audi, Volkswagen, Volvo (79-85), Cummins, Deutz , IHC, Other - w/ standard drain (14 Micron). If standard filter is needed w/o drain use 33358 - if self-venting drain required, use WF10024

Cross References
*General reference only, please check for correct specifications and measurements for your application
Baldwin BF1221
Cummins 3843760
Delphi HDF496
Donaldson P550248
Fleetguard FF215
Fram P1129
Onan 1866524
Perkins 26561118
Volvo 829993
WIX WF8181

SKU N192
Barcode # 765809334724
Brand WIX
Shipping Weight 0.5000kg
Shipping Width 0.300m
Shipping Height 0.300m
Shipping Length 0.300m
Shipping Cubic 0.027000000m3
Unit Of Measure ea
