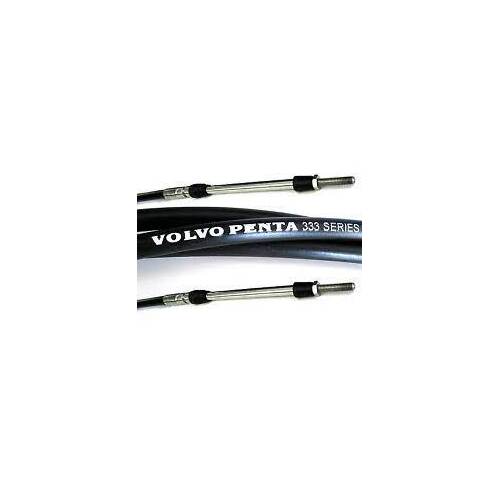

Volvo Penta Standard Control Cables (type 333)
Volvo Penta Part Number: see table below for measurements/sizes

Suits Mechanically Controlled Engines
Length (ft) Length (m)
5ft 1.524m
6ft 1.8288m
8ft 2.4384m
10ft 3.048m
12ft 3.6576m
14ft 4.2672m
16ft 4.8768m
18ft 5.4864m
20ft 6.096m
24ft 7.3152m
28ft 8.5344m
34ft 10.3632m
38ft 11.5824m
46ft 14.0208m




Volvo Penta’s standard control cables are manufactured of corrosionresistant material with an outer sheath of HD polyethylene. They are designed following Volvo Penta’s extremely stringent requirements for efficient operation with minimum play. They are permanently lubricated to ensure minimum friction and long service life. Single engine installations require two cables, twin installations require four.

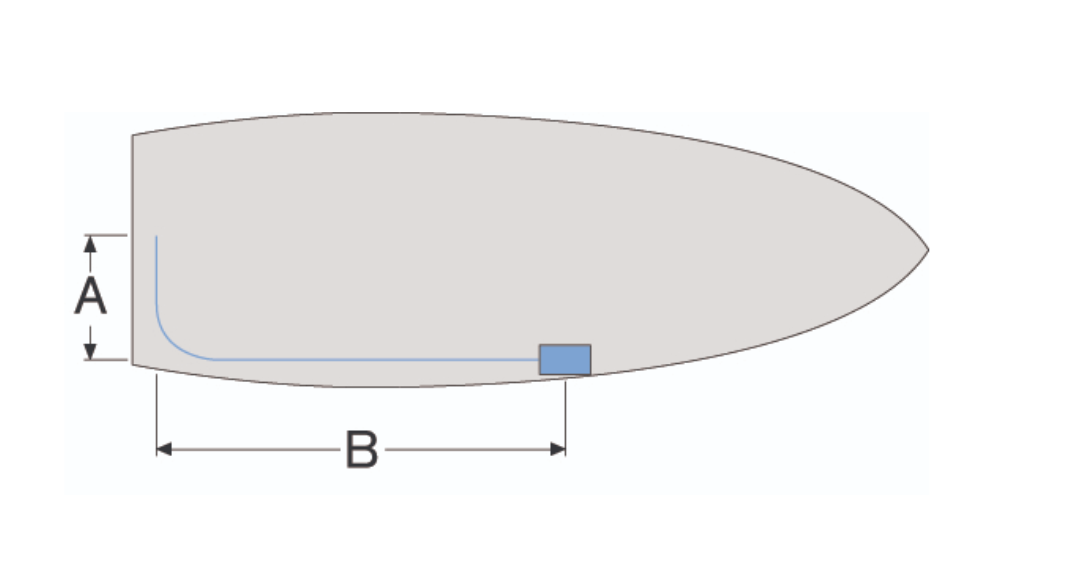

It is very important to select the exact cable length, fewer bends mean better operation and durability. Measure, in as straight a line as possible, the distance between the control mechanism and the engine/transmission connections. Calculate a radius of 200 mm for all bends. Adapt the cable as shown in the illustration L = A + B + 200 mm. If the measurement falls between two standard cable lengths, select the longer cable. The cables must not be cut to size.


**all cables are ex warehouse stock when located in Australia (out of stock cables are ex Sweden - please contact us for current availabilty) - please allow up to 3 days for forward delivery
SKU N36793
Barcode # 21407220
Brand Volvo Penta
Shipping Weight 1.0000kg
Unit Of Measure ea
