If showing as nil stock; please contact us as we can order in especially for you.


Suits Shafts = 2-1/4"

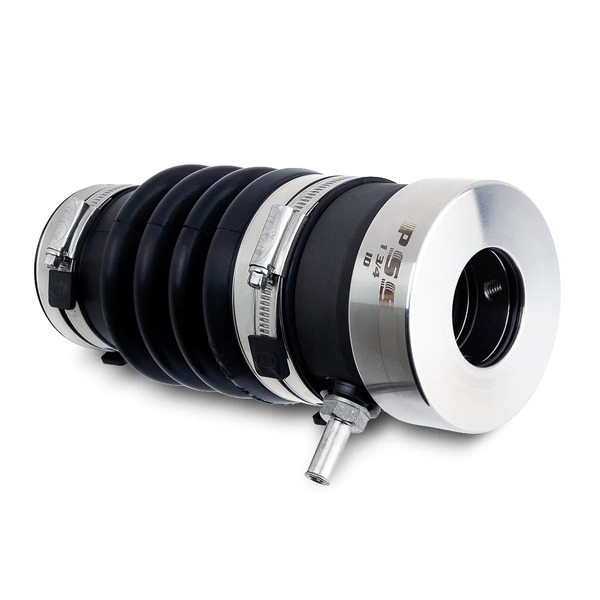

The Type A PSS Shaft Seal is a mechanical face seal.

The sealing surface is created between the flat surfaces of the rotating stainless-steel rotor and the stationary carbon flange. The stationary carbon flange is attached to the front side of the bellows with hose clamps, and the back end of the bellows fits over the Stern tube and is secured with hose clamps. The stainless-steel rotor is fitted on the shaft in front of the carbon flange. The stainless-steel rotor compresses the bellows before the rotor is secured to the shaft with set screws. This compression (pre-load) maintains constant contact between the two flat faces of the stainless-steel rotor and carbon flange, allowing the PSS to compensate for the variable fore and aft movement due to propeller thrust. In addition, the carbon flange is over-bored to the shaft diameter allowing it to “float” around the shaft and thus compensate for most misalignment and vibration problems. The stainless-steel rotor is sealed to the shaft by two O-rings recessed into the collar's bore. These O-rings rotate with the shaft and stainless-steel rotor and do not experience wear during operation



Temperature Limits: 5°F to 225°F (-15°C to 107°C)
Pressure Limits: 15 PSI (1 BAR)
Shaft RPM Limits: 10,000 RPM
Carbon Graphite: Lapped to 4 HLB (0.000044" tolerance)
316SS / Nitronic 50: Faced to 9-12 Ra
Bellows Material: Molded Nitrile - PVC

CERTIFICATION
  1. ABS Certified
  2. RINA Certified
  3. Bureau Veritas Certified



Add an Oring Kit to your order to ensure reliabilty at sea: HERE



Please contact us prior to purchase to ensure availabilty for your order if required urgently - Especially if your already on the hardstand.

SKU N619893
Barcode # 02-100-XXX
Brand PYI
Shipping Weight 4.0000kg
Unit Of Measure ea
