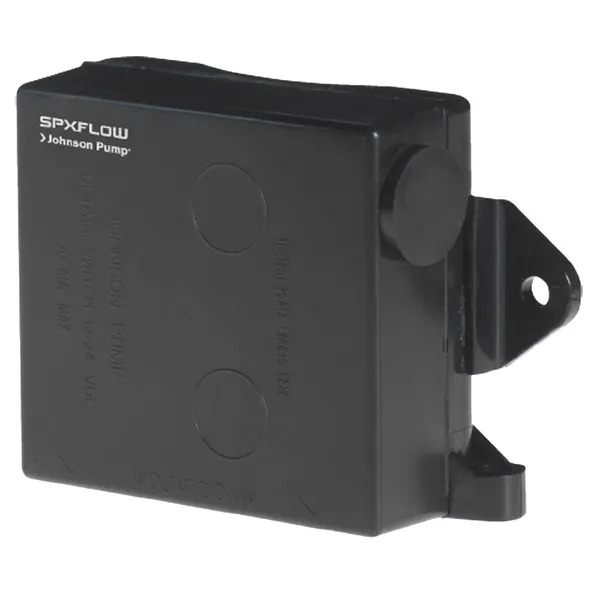

Ultima Switch - Electronic Automatic Switch

The solid-state electronic automatic switch Ultima Switch uses the patented Mirus field effect detector cells producing micro-electrical fields that detect disruptions caused by water and fluids. Detector cells are totally sealed and are never in contact with the water, will not corrode and are not affected by oil or foreign debris.
No moving parts. Totally sealed solid-state electronics and field detectors.
No mercury. No exposed sensors eliminate corrosion possibilities. Environmentally sensitive.
The switch activates at a 50 mm (2") fluid level and deactivates at a 19 mm (3/4") fluid level.
An eight-second delay prevents false starts. The switch is rated to handle pumps up to 20 amps at 12 or 24 volts.

  • Turns pump on at 2" (51 mm)
  • Turns pump off at 3/4" (19 mm)

Technical Data

Part No. Part No. USA Description Max Amp.
34-36303 36303* Ultima Switch Electronic Automatic Switch 12/24V

12V: 20A

24V: 10A

* base, as seen in the photo, included for USA version only, the Ultima Switch fits onto the base of standard Johnson Pump Submersible Bilge Pumps
See this product in the Johnson Pump Marine Catalogue - HERE
Ultima Switch Installation Manual - HERE

SKU 600
Barcode # J-34-3603
Brand Johnson SPX
Shipping Weight 0.5000kg
Unit Of Measure ea
